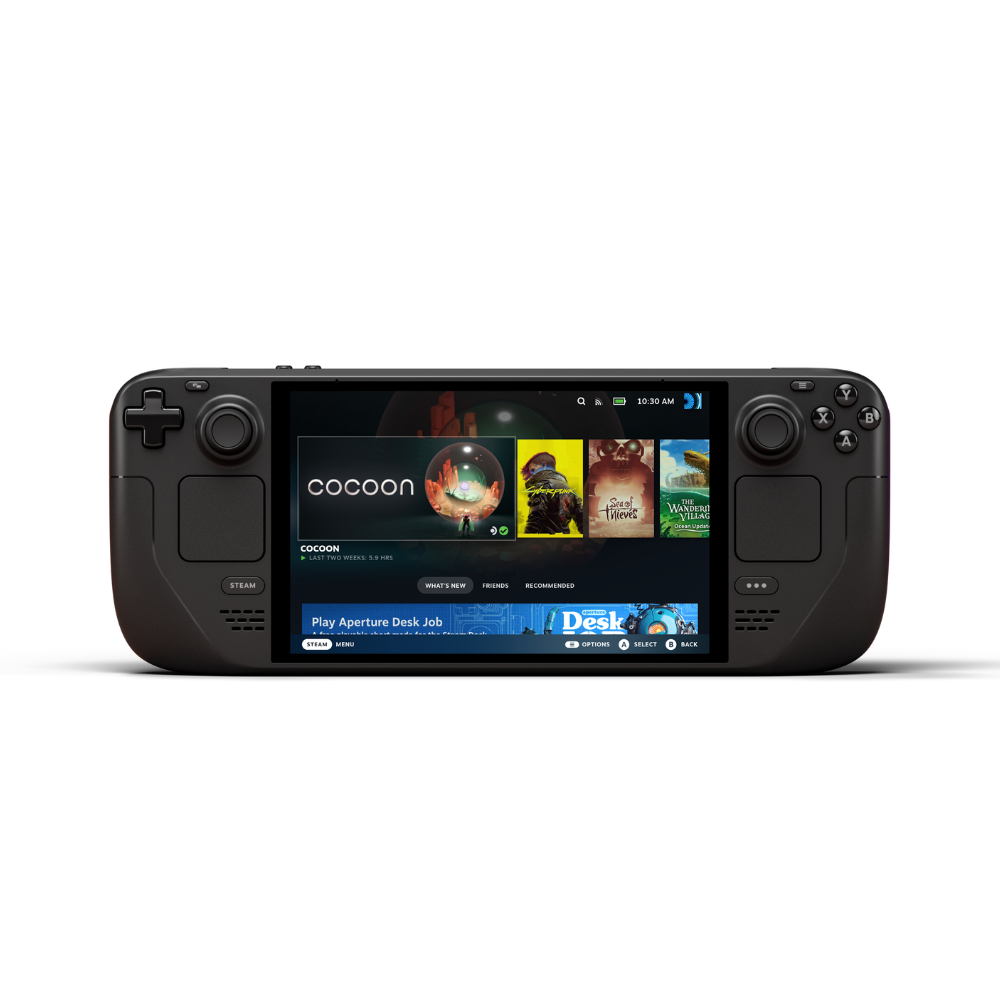

Valve Steam Deck OLED

Your games in a whole new light
An OLED screen with larger picture, better battery life, faster WiFi on top of world class ergonomics and an intuitive console-like experience

Brighter colors, blacker blacks
Steam Deck’s HDR OLED display is designed from the ground up for gaming with striking contrast, brilliant clarity, and a larger picture. With more colors, pure blacks, and amazing motion rendition, you’ll see your games in a new light.


Play longer, download faster
With Steam Deck OLED, we’ve overhauled the internals, making battery life longer and downloads faster. At the same time, we made the device a bit lighter and cooler.


Updated carrying case
The 1TB models (including Limited Edition) come in an exclusive case with a removable liner. This is perfect for throwing Steam Deck into your backpack when you don’t need the protection (or bulk) of the full hard case.


Better touchscreen
The touchscreen’s responsiveness and fidelity is vastly improved. Haptics are higher fidelity and more consistent. We’ve also added a dedicated Bluetooth antenna, improving connection for multiple controllers.


Easier to repair, easier to mod
All of the rear case screws are now Torx™ type, which screw into metal threads, making disassembly / reassembly possible without impacting structural integrity. Internal components are now easier to access, and Steam Deck OLED replacement parts will be coming to iFixit soon.

See other updates to Steam Deck OLED

General

Display

• Increased active area to 7.4" (from 7.0")
• Updated refresh rate to 90Hz (from 60Hz)
• Updated peak brightness to 1000 nits
• Updated touchscreen polling rate to 180Hz, improved latency and accuracy

Wifi/Bluetooth

• Updated WiFi / Bluetooth module
• Added support for WiFi 6E
• Added support for Bluetooth 5.3, supporting newer codecs such as aptX HD and aptX low-latency
• Added third antenna near the top of the device for better Bluetooth performance, including when docked
• Added support for wake from Bluetooth controllers

AUdio

• Improved bass response for an overall flatter sound profile
• Added support for using onboard microphone array simultaneously with the 3.5mm headphones connector

Controls

• Adjusted analog stick top material and shape for increased grip and dust build-up resistance
• Adjusted analog stick post material to improve interaction feel with front cover and reduce wear
• Improved reliability of analog stick touch detection
• Improved responsiveness and tactility of shoulder buttons switch mechanism
• Adjusted D-pad snap ratio and diagonal interactions
• Redesigned trackpad for improved fidelity and edge detection
• Greatly improved trackpad haptics feel and precision

Power

• Improved battery capacity from 40Wh to 50Wh
• Improved battery chemistry for faster charging, from 20% to 80% in as little as 45 minutes
• Changed charging LED to WRGB
• Added support for waking up from initial unboxing by long-pressing power button instead of requiring AC power
• Adjusted power supply cable length from 1.5m to 2.5m
• Added logo to power supply

Frame

• Reduced total system weight to ~640g, or ~5% less than Steam Deck
• Rear cover screws now thread into metal
• Adjusted rear cover screw heads to Torx™, as well as other materials and geometry tweaks on the heads to reduce stripping risk
• Lowered number of screw types throughout system
• Reduced step count required for common repairs
• Improved bumper switch mechanism drop reliability
• Moved bumper switch to joystick board for easier repair
• Improved display repair/replacement to not require taking rear cover off

Software

• Greatly improved memory power management firmware
• Added preliminary support for open-source BIOS and EC firmware
• Improved resume time by roughly 30%

512GB NVMe SSD

• 1280 x 800 HDR OLED display
• 7.4" Diagonal display size
• 6 nm APU
• Wi-Fi 6E
• 50Whr battery; 3-12 hrs of gameplay (content dependent)
• 45W Power supply with 2.5m cable
• Carrying case
• Steam profile bundle

1TB NVMe SSD

• 1280 x 800 HDR OLED display
• 7.4" Diagonal display size
• Premium anti-glare etched glass
• 6 nm APU
• Wi-Fi 6E
• 50Whr battery; 3-12 hrs of gameplay (content dependent)
• 45W Power supply with 2.5m cable
• Carrying case with removable liner
• Steam profile bundle
• Exclusive startup movie
• Exclusive virtual keyboard theme

**Important Note: US Imported, comes with US plug but can be use with Nintendo power supply or other 45W USB-C Power Supply**
